Creating the Factory Layout

The following is a step by step guide on how to create an analysis in AVIX.

Watch video: Create the process structure in AVIX

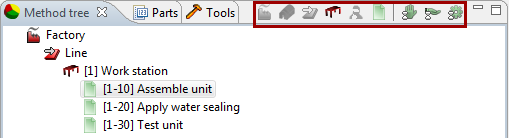

Bring the method module in view by clicking Method-icon.png The different levels in the method tree can be added by pressing the buttons above the tree.



Make sure to name each level when they are created. When selecting a level in the tree, an editor will open in the upper right window.

  1. Create a factory icon_Factory.png
  2. Create a building (if needed) icon_Building.png
  3. Create a line icon_Line.png
  4. Create a workstation icon_Workstation.png

These levels must be created in order to create a task  icon_Task.png
