Result and Reports


Result & DFA KPI

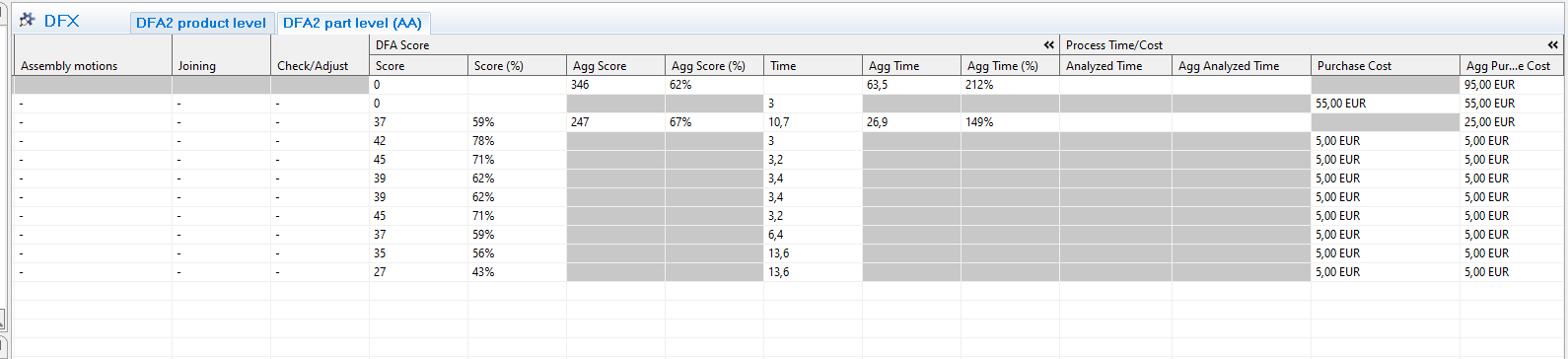

Once the analysis is done, the result and summary can be viewed by scrolling right in the grid.


  • Score: DFA score that can be compared with the same product in another state of design process
  • Score (%): DFA score compared to the total number of score possible.
  • Agg score: Aggregated score for all parts.
  • Agg score (%): Score divided by total score. Should be at least 70% according to benchmark standards in DFAA
  • Time: Optimal time is 3 seconds according to DFAA and are achieved when evaluation is green (score 9). For yellow (score 3) and red (score 1)  time is added according to DFAA
  • Agg. time: Aggregated time.
  • Agg Time (%): Time divided by total optimal theoretical time .How many times longer is required to perform the assembly compared to optimal DFAA index. (E.g. 500% means 5 times longer than optimal according to DFAA standard)


Reports


Two reports that can be printed after completing a DFX analysis:

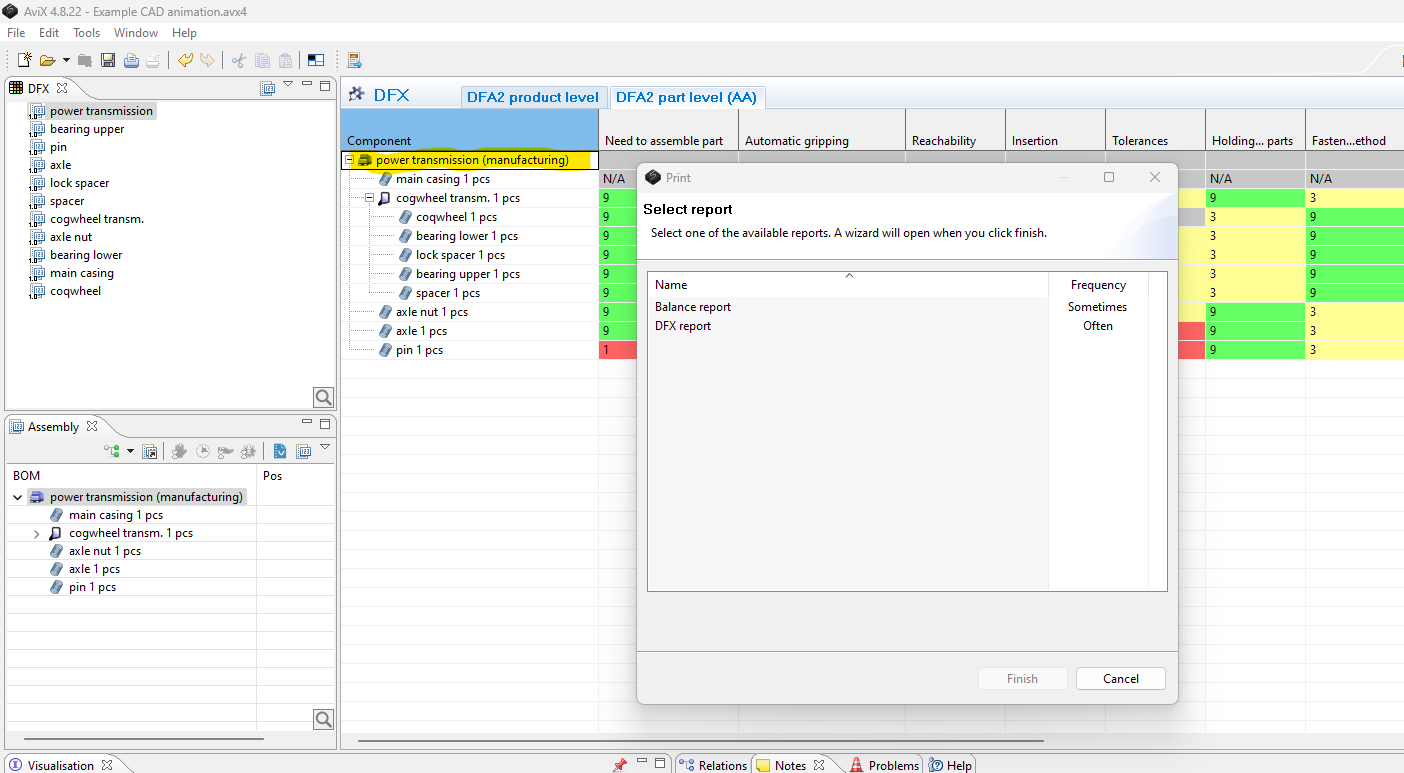

The DFX report, is printed by: Selecting the top assembly level in the DFX grid --> Print button

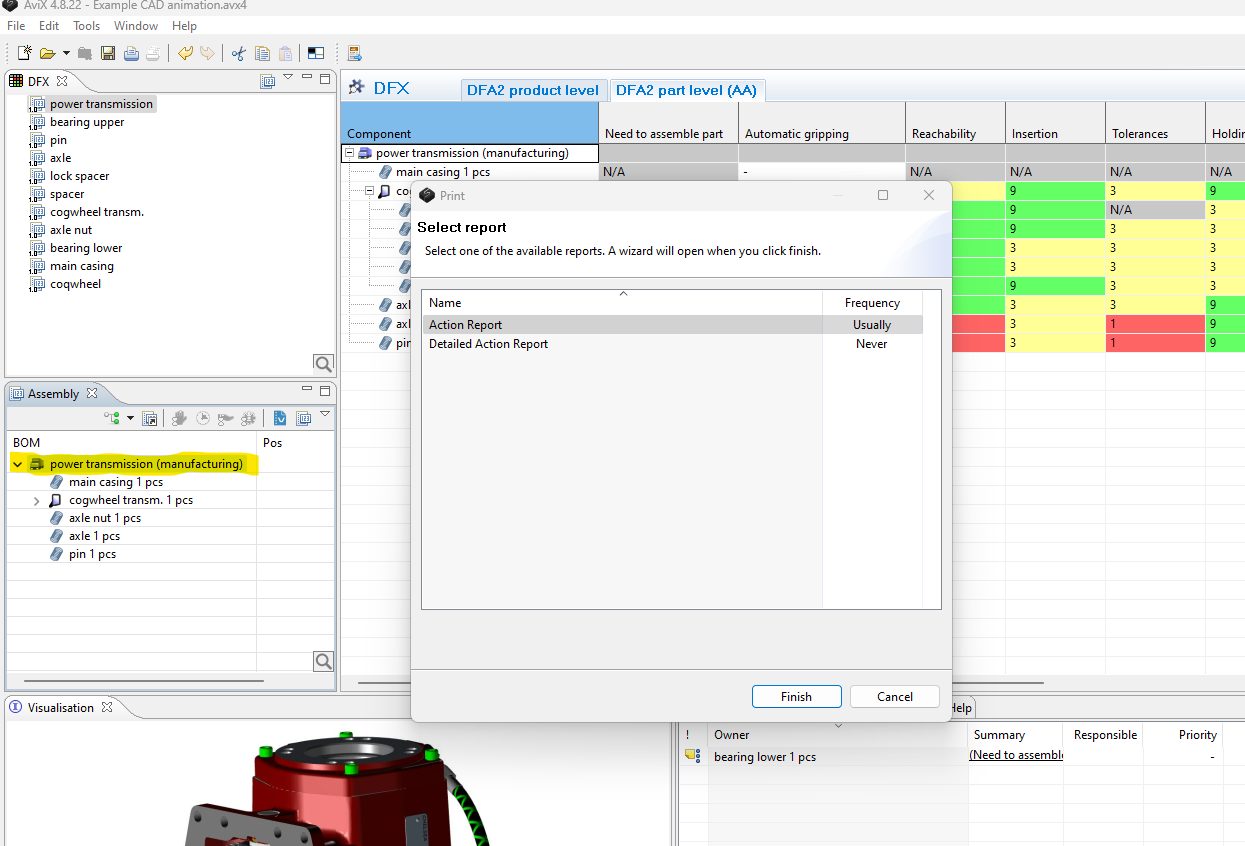

The Action report, is printed by: Selecting the top assembly level in the Assembly view  --> Print button
