DFX analysis
Adding project properties
First, (this is optional) add the necessary information about the project and team.

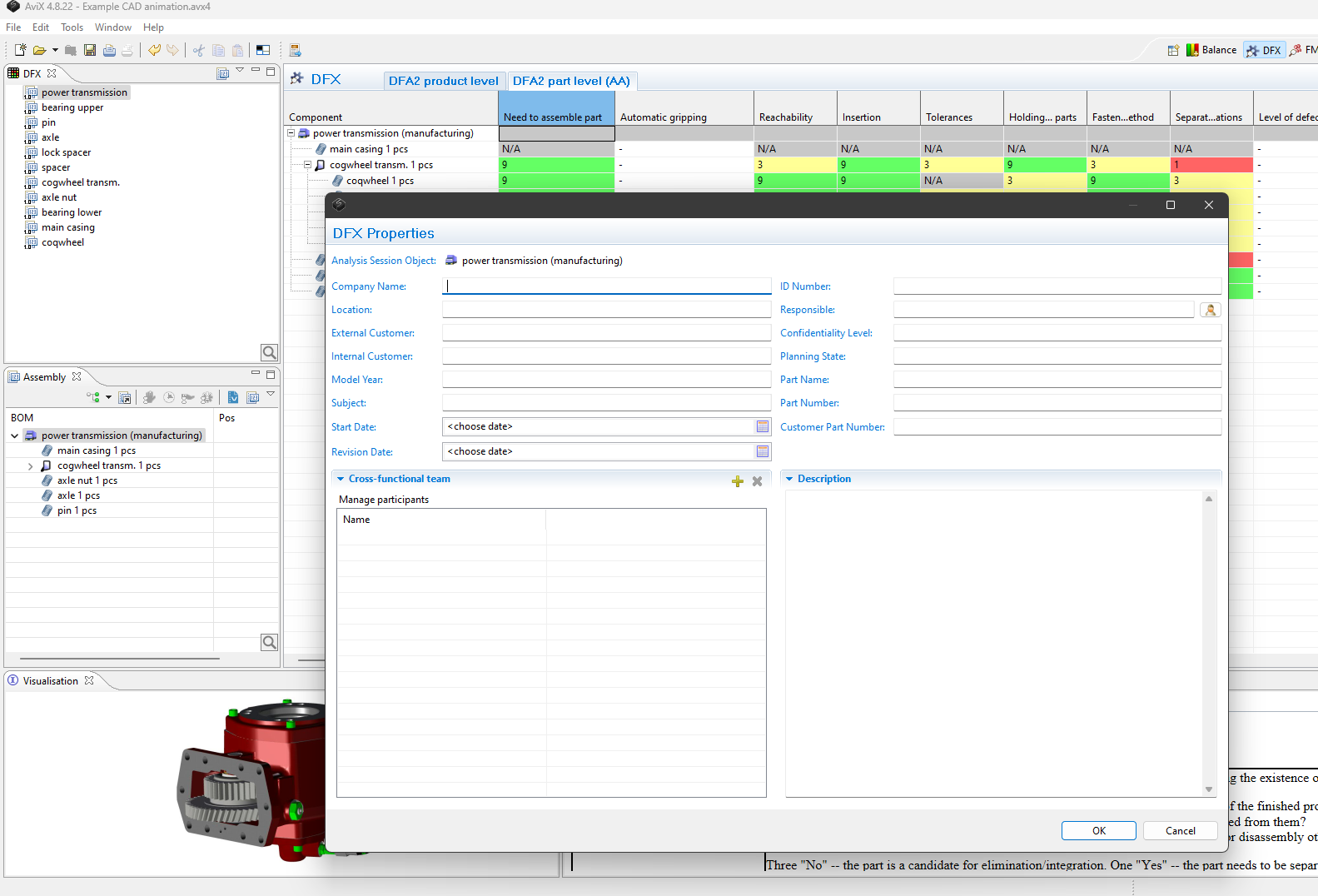

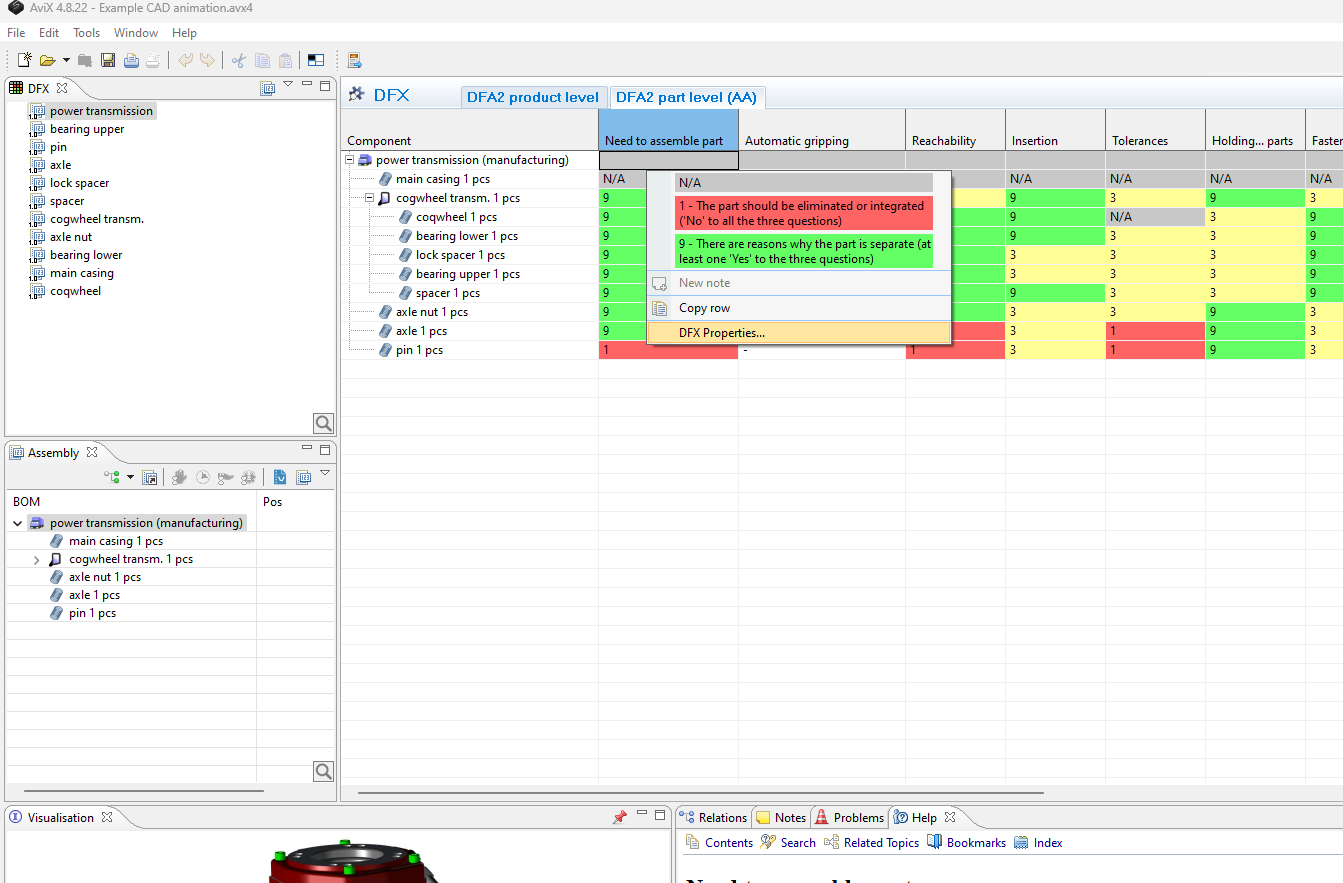

- Right click on a cell and select DFX properties
- Add the information
DFX ANALYSIS
Start working with the DFX analysis is straight forward:

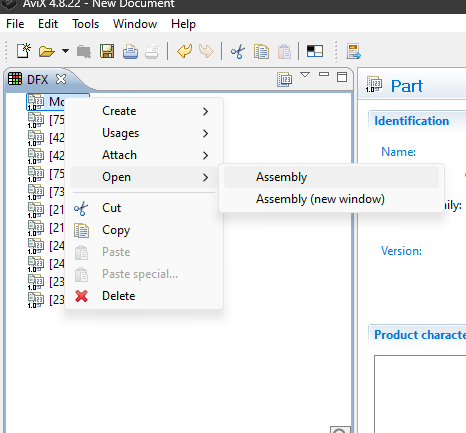

- Select the desired top part in the parts list and right-click "open in assembly view". The MBOM will now show in the assembly view.

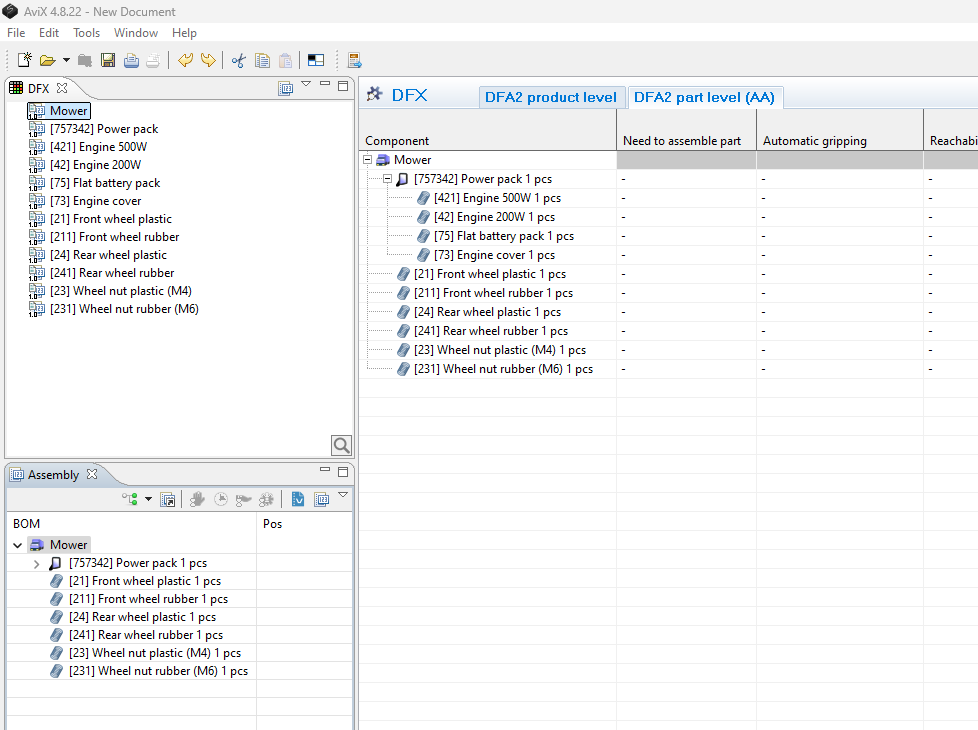

- Select the product structure in the assembly view and the DFX table/matrix will be available. You can now choose between the DFX at part-level or product-level. (the aspects can be changed in the settings)

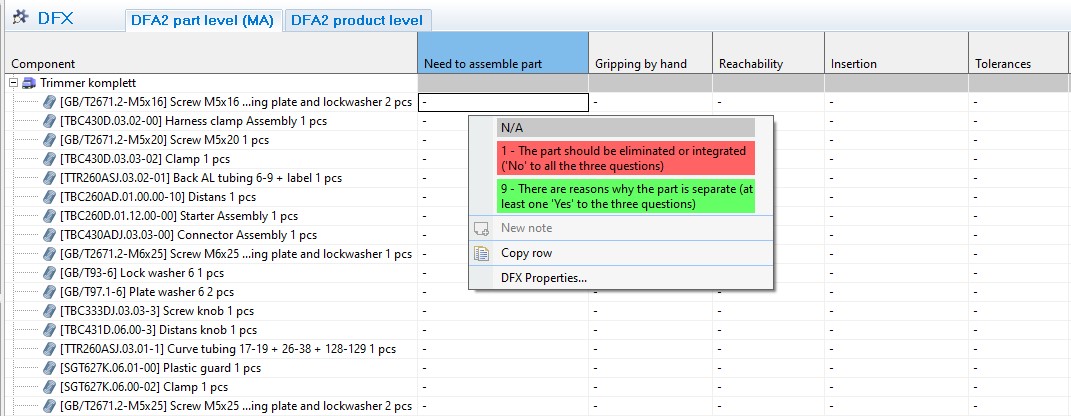

- The DFX analysis can now be performed by selecting the desired DFX aspect, and then right-click to evaluate the part
- The analysis editor has a grid layout, where the BOM structure appears in the first column
- The remaining columns in the grid are the DFX aspects in use, as well as two “result” columns which display specific score results (scroll right)
- Analyzing a component for a certain aspect is carried out in one of the grid cells. This is done by the right-click menu, or simply by using the keyboard (e.g. by typing 9 for setting the highest score).
- Selecting N/A (Not applicable) is indicated by a grey cell.
Help view

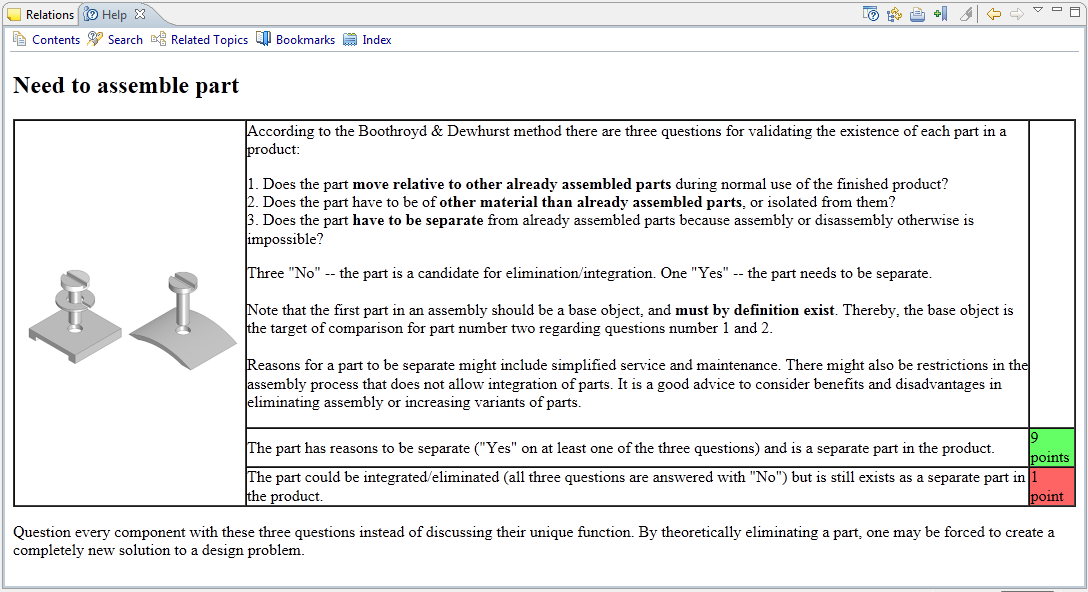

The help view is displayed when selecting a DFA aspect in the grid.

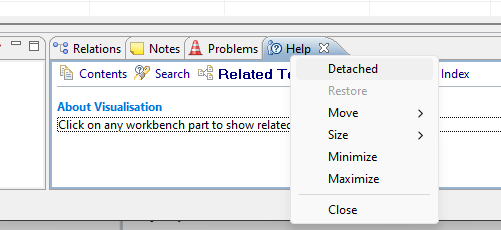

"Detaching” the Help view, making it a floating window frees up available screen space
Note/action follow-up information

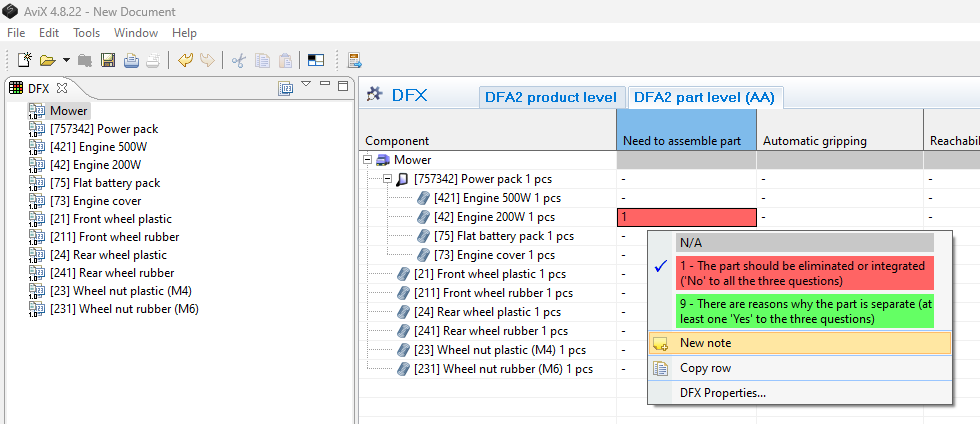

It is of significance for the follow-up work that the discussions and comments that typically arise during an “analysis session” are captured. This is, of course, even more important in the case of a problem: when the score of 1 is set for a Component, it is advisory to document the cause and what actions are to be taken. All this can be achieved by adding a “Note” (from the right-click menu in the grid), and entering the relevant information.
